Transformar Bushing Insulator

Products:

Transformer Bushing Insulators:

Image big

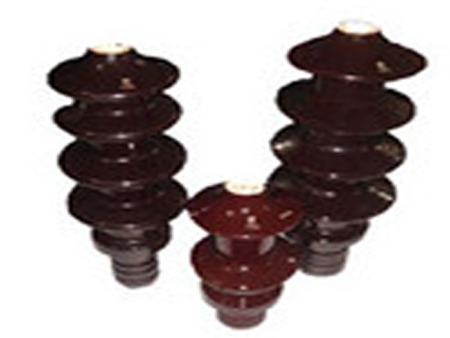

Details of Transformer Bushing Insulators

We are manufacturer & supplier of superior quality porcelain bushings with excellent mechanical and electrical characteristics.

Sl No:	Details:	Product Category:	REFERENCE I.S.CODE (Drg. & Design)	REFERENCE I.S.CODE (Inspection)
1	1.1kv 250Amps. (Upper)	A1	IS: 3347 P1S1	IS: 7421/74
2	11.1kv.630Amps. (Upper)	A1	IS: 3347 P1S1	IS: 7421/74
3	1.1kv.1000Amps. (Upper)	A1	IS: 3347 P1S1	IS: 7421/74
4	1.1kv.2000Amps. (Upper)	A1	IS: 3347 P1S1	IS: 7421/74
5	3.6kv.250Amps. (Upper)	A2	IS: 3347 P2S2	IS: 2099/73
6	3.6kv.630Amps. (Upper)	A2	IS: 3347 P2S2	IS: 2099/73
7	3.6kv.1000Amps. (Upper)	A2	IS: 3347 P2S2	IS: 2099/73
8	3.6kv.2000Amps. (Upper)	A2	IS: 3347 P2S2	IS: 2099/73
9	1.1kv.250Amps. (Lower)	B1	IS: 3347 P1S1	IS: 7421/74
10	1.1kv.630Amps. (Lower)	B1	IS: 3347 P1S1	IS: 7421/74
11	1.1kv.1000Amps. (Lower)	B1	IS: 3347 P1S1	IS: 7421/74
12	1.1kv.2000Amps. (Lower)	B1	IS: 3347 P1S1	IS: 7421/74
13	1.1kv.3150Amps. (Lower)	B1	IS: 3347 P1S1	IS: 7421/74
14	3.6kv.250Amps. (Lower)	B2	IS: 3347 P2S1	IS: 2099/73
15	3.6kv.630Amps. (Lower)	B2	IS: 3347 P2S1	IS: 2099/73
16	3.6kv.1000Amps. (Lower)	B2	IS: 3347 P2S1	IS: 2099/73
17	3.6kv.2000Amps. (Lower)	B2	IS: 3347 P2S1	IS: 2099/73
